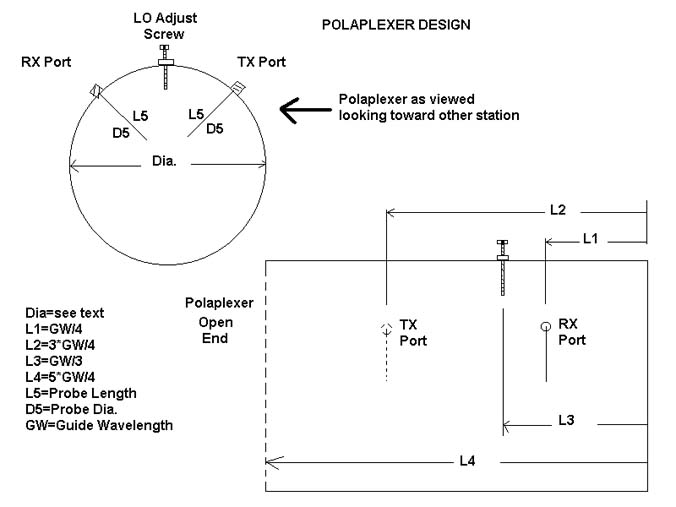

Polaplexer Mechanical Drawing 2 views

Example dimensions for design frequency of 2375 MHz,
(Tx = 2302 MHz, Rx = 2448 MHz)
Polaplexer diameter of 3.875 in.
Probes of #18 AWG wire, 0.0403 in. dia,

L1 = 1.88 in.
L2 = 5.64 in.
L3 = 2.50 in.
L4 = 9.4 in.
L5 = 1.24 in. (quarter wave method)
L5 = 1.07 in (empirical method)
