10 Ghz Dual Conversion ....Transverter
Figures & Photos for Part One
Figure 2 Block Diagram

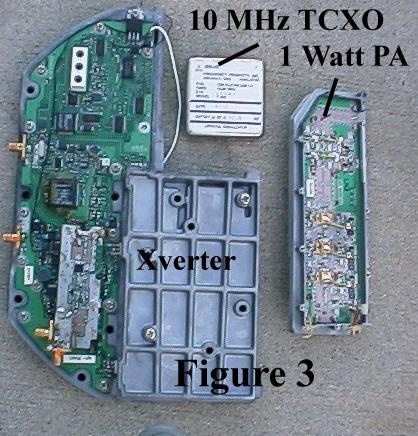

Figure 3 Photo of modified transverter
with 1 watt PA and 10 MHz TCXO

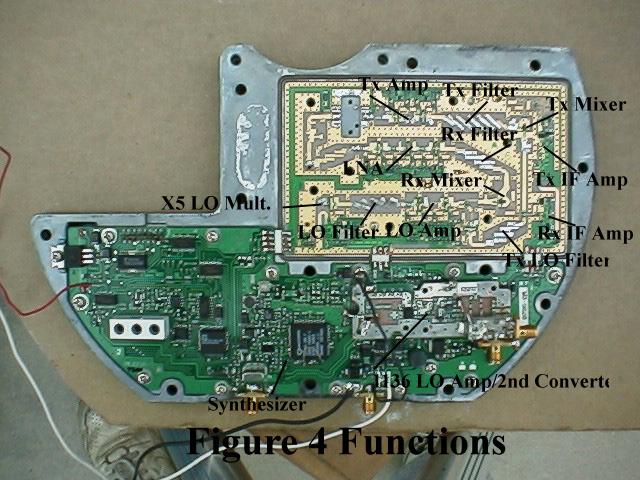

Figure 4 Photo showing functional areas
of modified transverter
