Winegard HD-6000

The Winegard HD-6000 is a dual-driven Yagi with four elements on a 33″ boom. Winegard used to call it the ProStar PR-6000.

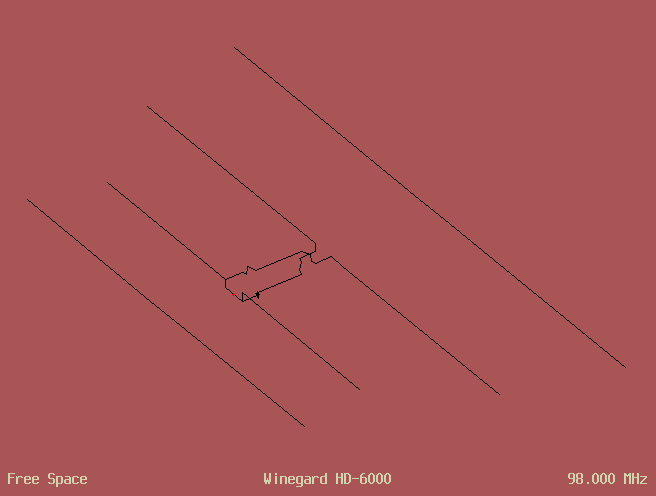

I modeled the antenna with the AO 9.53 Antenna Optimizer program.

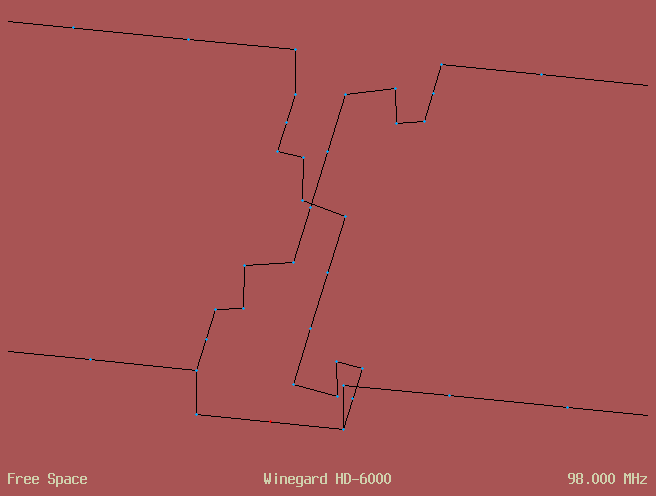

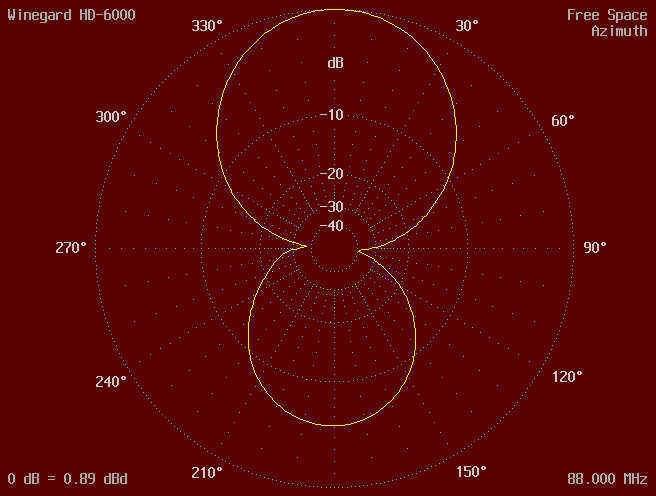

This shows phasing line detail. The red dot is the feedpoint and blue dots mark analysis segments. One phasing line connects directly to the elements, while the other passes through inch-long rivets. The unequal line lengths cause some pattern asymmetry visible in the plots below. Results below are for no boom, while later graphs show the effects of a simple boom model.

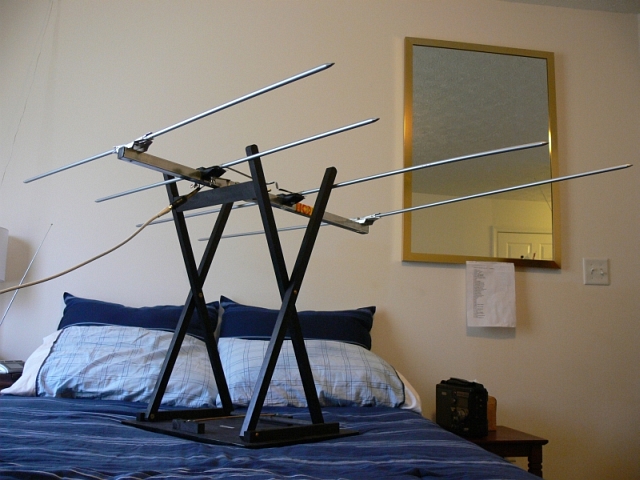

Bryce Foster used this HD-6000 indoors at Murfreesboro, Tennessee.

Modeling Notes

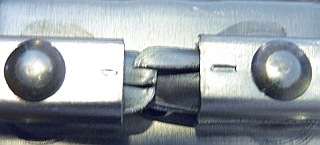

The reflector of one HD-6000 measured 64.5″ long, another was 65″, and Winegard specs the maximum width of the antenna as 65.5″. The image to the left shows tubing interference at the center of the 64.5″ reflector. I used 65.5″ in the model.

The driven elements mount to plastic center insulators with metallic locking flanges. The slits on each side inhibit current over most of the flange length so I did not model them.

The model does not include the 75:300Ω balun that comes with the antenna. Subtract 0.75 dB from the forward gain figures to account for its loss.

Modeling Results

Calculated performance is for 28 analysis segments per conductor halfwave. Forward gain includes mismatch and conductor losses. F/R is the ratio of forward power to that of the worst backlobe in the rear half-plane.

Frequency  Impedance    SWR   Mismatch  Conductor   Forward    F/R
   MHz        ohms             Loss dB   Loss dB   Gain dBd     dB
    88    71.3 + j220   6.55     3.38      0.07      1.51      6.53
    89     129 + j253   4.17     2.05      0.05      2.79      9.20
    90     207 + j259   2.87     1.15      0.03      3.53     11.38
    91     285 + j224   2.12     0.60      0.03      3.91     12.92
    92     335 + j160   1.67     0.28      0.02      4.06     13.78
    93     350 + j92    1.38     0.11      0.02      4.09     13.99
    94     341 + j33    1.18     0.03      0.02      4.05     13.80
    95     318 - j6     1.06     0.00      0.02      3.95     13.70
    96     295 - j29    1.11     0.01      0.01      3.85     13.62
    97     277 - j46    1.19     0.03      0.01      3.82     12.82
    98     260 - j59    1.29     0.07      0.01      3.78     12.94
    99     243 - j69    1.39     0.12      0.01      3.73     13.19
   100     228 - j75    1.48     0.17      0.01      3.68     13.44
   101     215 - j79    1.57     0.22      0.01      3.64     13.69
   102     203 - j82    1.66     0.28      0.01      3.60     13.96
   103     194 - j84    1.74     0.33      0.01      3.58     14.27
   104     185 - j85    1.82     0.38      0.01      3.56     14.64
   105     177 - j87    1.90     0.44      0.01      3.56     15.05
   106     170 - j89    1.98     0.50      0.01      3.56     15.50
   107     164 - j92    2.07     0.56      0.01      3.57     16.06
   108     156 - j96    2.17     0.64      0.01      3.58     16.65

Antenna File

Winegard HD-6000
Free Space
98.000 MHz
32 6063-T832 wires, inches

p = .2226	; phasing line equivalent diameter (.375" x .04")
d = .1875	; rivet diameter
w = 1		; rivet length
r = 1.375	; rivet spacing / 2
s = r - .5	; phasing line inward bend
t = .875	; phasing line vertical bend
y = w + t	; height of lower phasing line midsection
b = 1.1		; equivalent diameter at mounting brackets

ref = 32.75	; element half-lengths
de1 = 29.5
de2 = 21.125
dir = 23.25

refp = 0	; element positions
de1p = 12.5
de2p = 23
dirp = 31

1  de2p  -r -w	 de2p   r -w	 #22 copper	; feedpoint jumper

1  refp -ref 0	 refp -2.5 0	.375
1  refp -2.5 0	 refp  2.5 0      b
1  refp  2.5 0	 refp  ref 0	.375
1  de1p    r 0	 de1p  de1 0	.375
1  de1p   -r 0	 de1p -de1 0	.375
1  de2p    r 0	 de2p  de2 0	.375
1  de2p   -r 0	 de2p -de2 0	.375
1  dirp -dir 0	 dirp -2.5 0	.375
1  dirp -2.5 0	 dirp  2.5 0      b
1  dirp  2.5 0	 dirp  dir 0	.375

shift x de1p
1  0 -r 0      0 -r -w     d		; rivet
1  0 r 0       1.875 r 0   p		; top phasing line
1  1.875 r 0   2 s 0       p
1  2 s 0       2.125 s t   p
1  2.125 s t   2.5 0 t     p
1  2.5 0 t     8 0 t       p
1  8 0 t       8.25 -s t   p
1  8.25 -s t   8.375 -s 0  p
1  8.375 -s 0  8.5 -r 0    p
1  8.5 -r 0    10.5 -r 0   p
1  0 -r -w     1.875 -r -w p		; bottom phasing line
1  1.875 -r -w 2 -s -w     p
1  2 -s -w     2.125 -s -y p
1  2.125 -s -y 2.5 0 -y    p
1  2.5 0 -y    8 0 -y      p
1  8 0 -y      8.25 s -y   p
1  8.25 s -y   8.375 s -w  p
1  8.375 s -w  8.5 r -w    p
1  8.5 r -w    10.5 r -w   p
1  10.5 r -w   10.5 r 0    d		; rivet
1  10.5 -r -w  10.5 -r 0   d		; rivet
1 source
Wire 1, center

Mounting brackets: 5" x 1.5" x 0.5" x .05" U-channels, 0.5" reinforcement sheaths.
Bracket equivalent diameter calculated with YO 7.70.
Phasing line equivalent diameter calculated with W9CF formula.
Driven element locking flanges not modeled.
