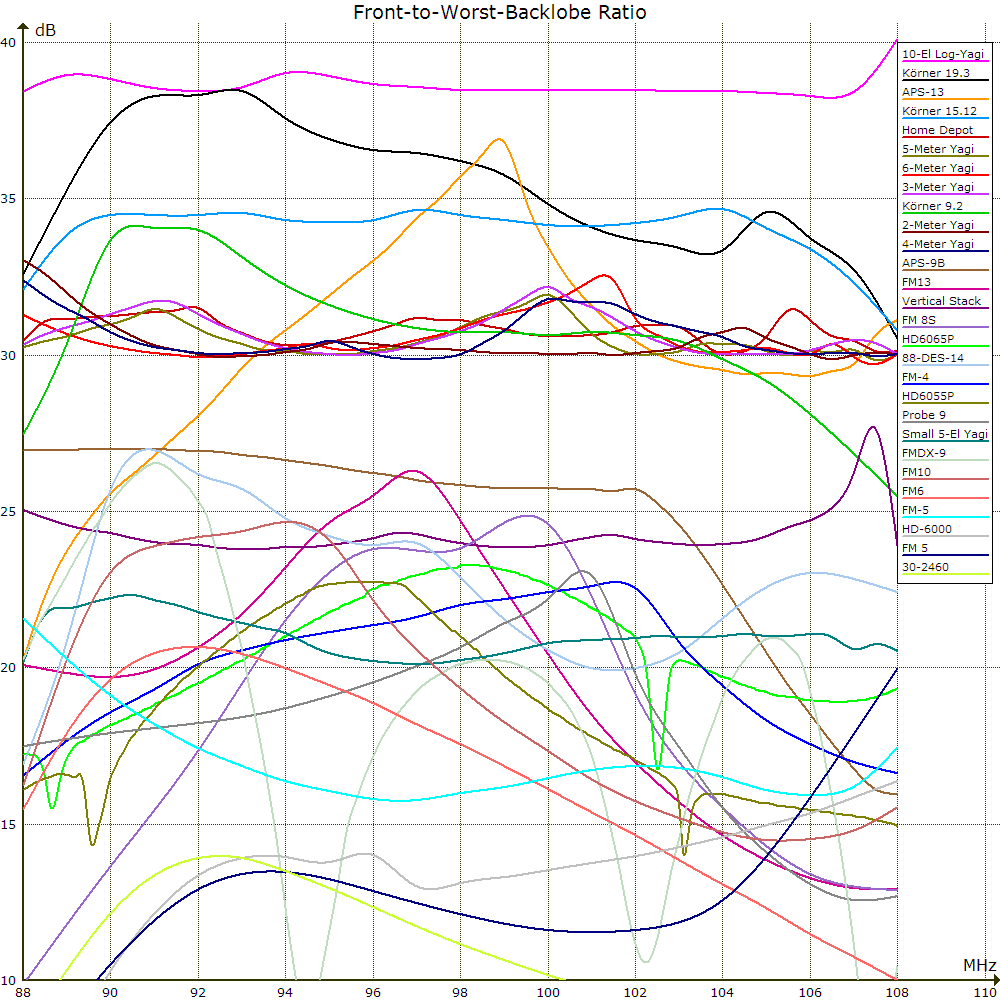

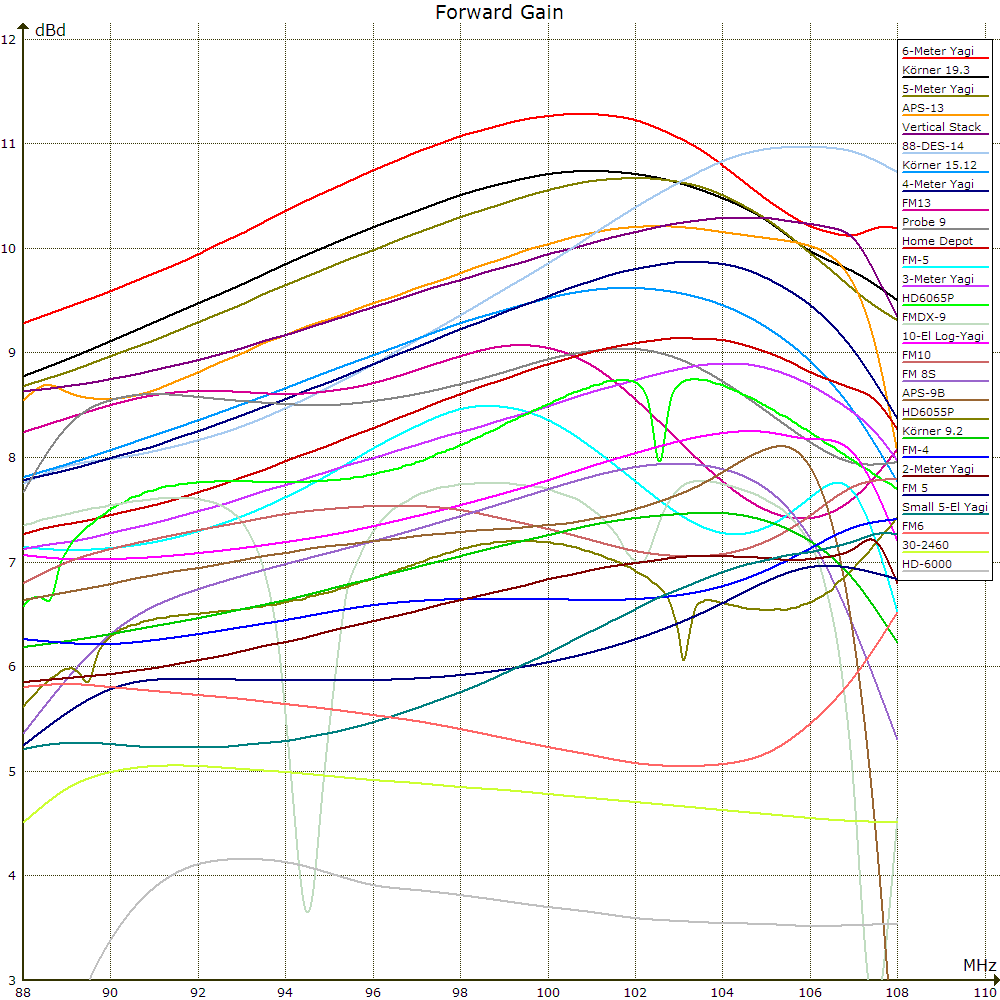

Antennas are in free space. The gain reference is a halfwave dipole and the backlobe region is the rear half-plane. Gain curves include conductor and mismatch loss but not balun loss. Models do not include passive booms.


August 13, 201588108 MHz
